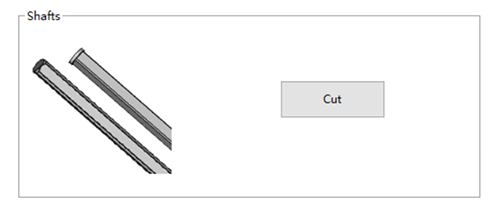

Shafts

1. Cut

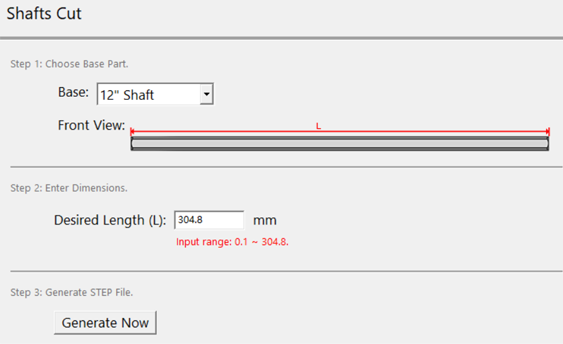

1.1 Select the “Base” size of the shaft from the drop-down box: 12″ Shaft, 12″ HS Shaft, 6″ Capped Shaft. View the corresponding front view in real time.

1.2 Design the parameters for “Desired Length”.

① “Desired Length” range: 0.1~304.8mm / 0.01~12.00inch.

1.3 Click the “Generate Now” button.

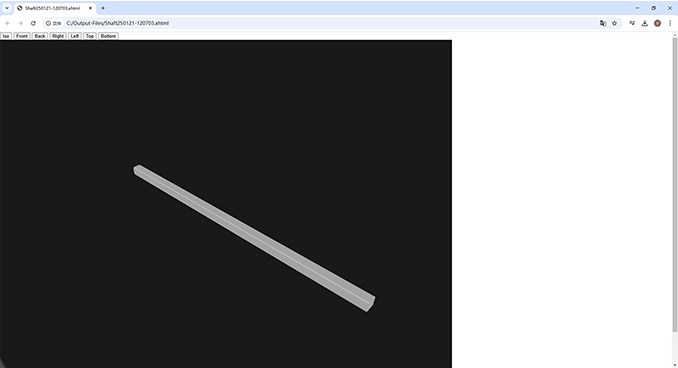

① If “Preview (HTML)” is selected in the settings, a browser preview will automatically pop up after normal generation, allowing you to view your design in all directions.

② After normal generation, go to the STEP file generation address with one click according to the pop-up prompt.
